QL65F6S-A/B/C 650nm 10mW 60mA Laser Diode

QL65F6S-A/B/C

Part Name:QL65F6S-A/B/C 650nm 10mW 60mA Laser Diode

Part No:QL65F6S-A/B/C

Wavelength:650nm

IOP:60mA

Optical Power:10mW CW

Part Package:TO-18 (φ5.6mm)

APPLICATION

The architectural decoration equipment market

1, investment line equipment manufacturers

2, scanner manufacturers The

instrument Market

1, laser range finder, total station equipment, etc.

- toys and stage lighting market

1, laser pointer, pointer manufacturers

2, the stage, Cara OK and other equipment manufacturers The

barcode scanner market Other market -

1, gun sight manufacturers

2, laser treatment instrument manufacturers

3, sensor, laser headlight and so on

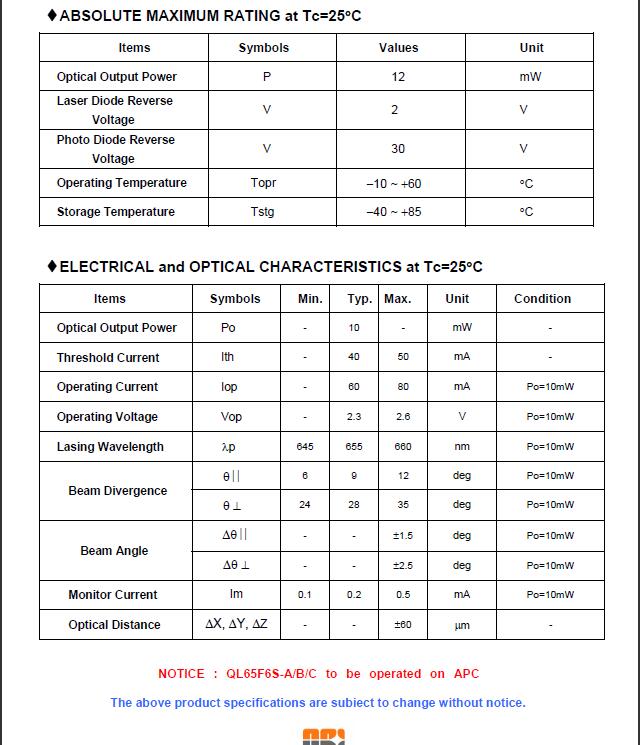

SPECIFICATION

SPECIFICATION: Know

PRODUCT DETAILS

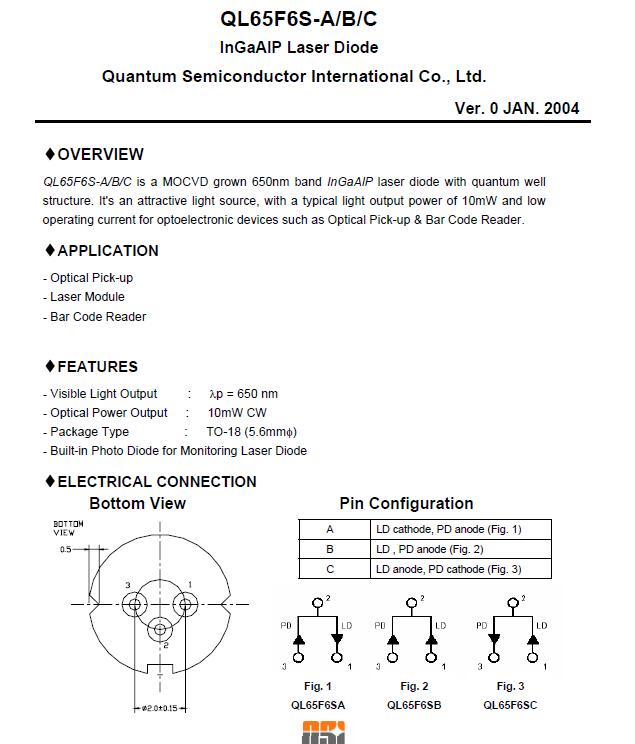

♦OVERVIEW
QL65F6S-A/B/C is a MOCVD grown 650nm band InGaAlP laser diode with quantum well
structure. It's an attractive light source, with a typical light output power of 10mW and low
operating current for optoelectronic devices such as Optical Pick-up & Bar Code Reader.
♦APPLICATION
- Optical Pick-up
- Laser Module
- Bar Code Reader
♦FEATURES
- Visible Light Output : λp = 650 nm
- Optical Power Output : 10mW CW
- Package Type : TO-18 (5.6mmφ)
- Built-in Photo Diode for Monitoring Laser Diode
