QL85D6S-A/B/C

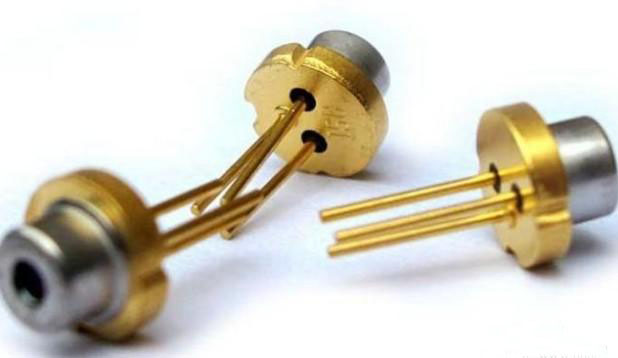

Part Name：QL85D6S-A/B/C 850nm 5mw Semiconductor laser diode
Part No：QL85D6S-A/B/C
Wavelength：850nm
IOP：17mA
Optical Power：5mW
Part Package：TO-18 (φ5.6mm)
- sensor - industrial light module - 3D action recognition

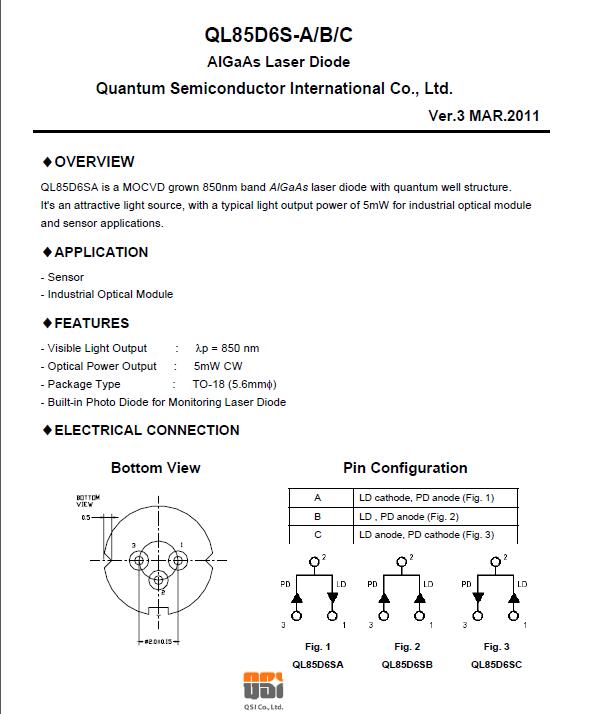

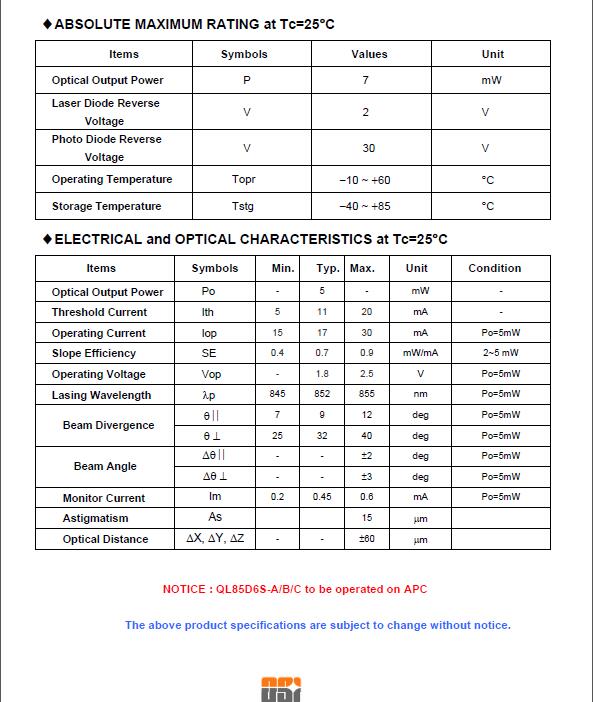

SPECIFICATION： Know
♦OVERVIEW
QL85D6SA is a MOCVD grown 850nm band AlGaAs laser diode with quantum well structure.
It's an attractive light source, with a typical light output power of 5mW for industrial optical module
and sensor applications.
♦APPLICATION
- Sensor
- Industrial Optical Module
♦FEATURES
- Visible Light Output : λp = 850 nm
- Optical Power Output : 5mW CW
- Package Type : TO-18 (5.6mmφ)
- Built-in Photo Diode for Monitoring Laser Diode
