QL80R4S-A/B/C/D/E-S2 808nm 300mw Stage lighting la

QL80R4S-A/B/C/D/E-S2

Part Name:QL80R4S-A/B/C/D/E-S2 808nm 300mw Stage lighting la

Part No:QL80R4S-A/B/C/D/E-S2

Wavelength:808nm

IOP:350mA

Optical Power:300mW

Part Package:TO-18 (φ5.6mm)

APPLICATION

Solid state laser excitation - medical use - material process - Measurement - stage lighting

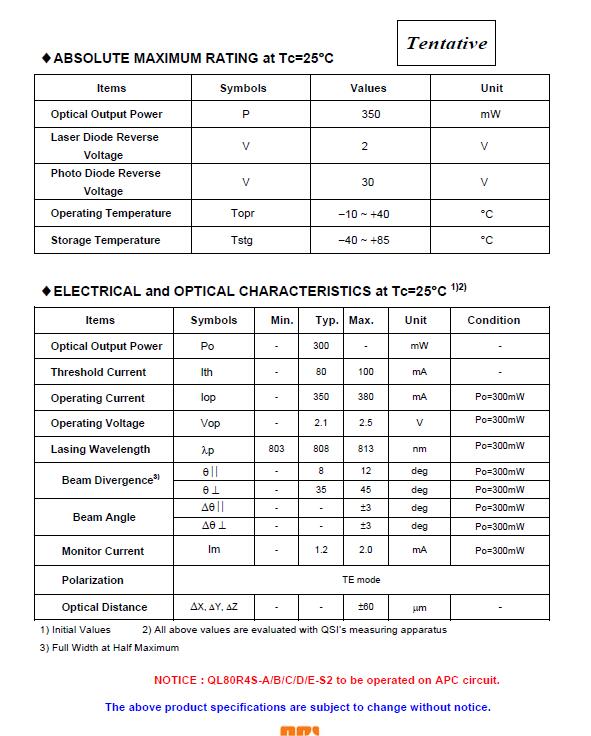

SPECIFICATION

SPECIFICATION: Know

PRODUCT DETAILS

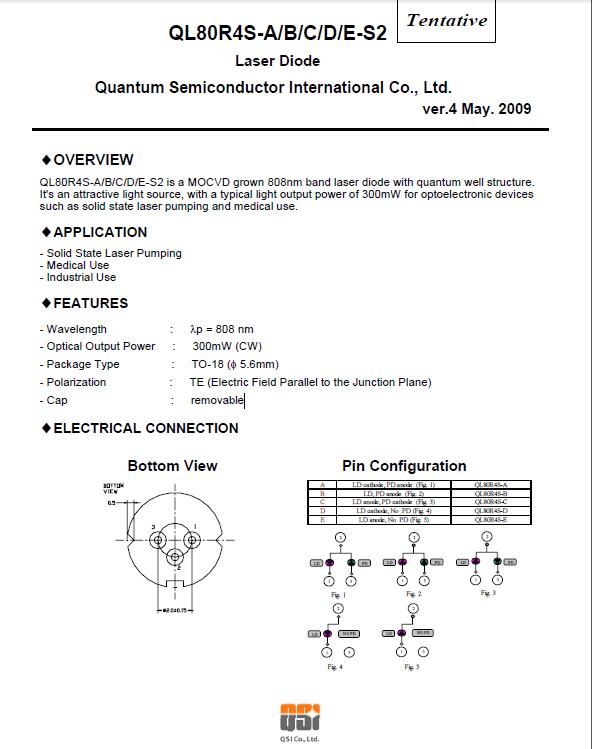

♦OVERVIEW
QL80R4S-A/B/C/D/E-S2 is a MOCVD grown 808nm band laser diode with quantum well structure.
It's an attractive light source, with a typical light output power of 300mW for optoelectronic devices
such as solid state laser pumping and medical use.
♦APPLICATION
- Solid State Laser Pumping
- Medical Use
- Industrial Use
♦FEATURES
- Wavelength : λp = 808 nm
- Optical Output Power : 300mW (CW)
- Package Type : TO-18 (φ 5.6mm)
- Polarization : TE (Electric Field Parallel to the Junction Plane)

- Cap : removable
