QL65E7S-A/B/C-L

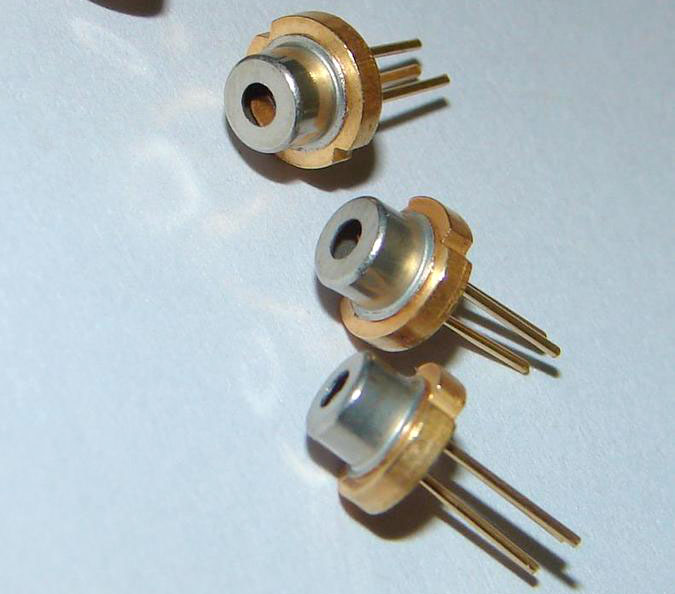

Part Name：QL65E7S-A/B/C-L-650nm 7mw Laser Diode
Part No：QL65E7S-A/B/C-L
Wavelength：650nm
IOP：35mA~50mA
Optical Power：7mW CW
Part Package：TO-18 (φ5.6mm)
barcode scanner
laser module
line tester
environmental protection PM 2.5

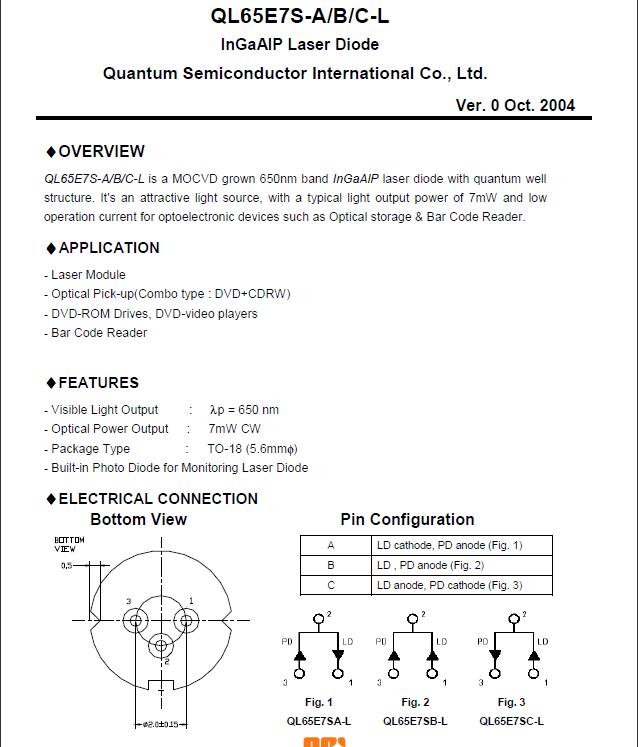

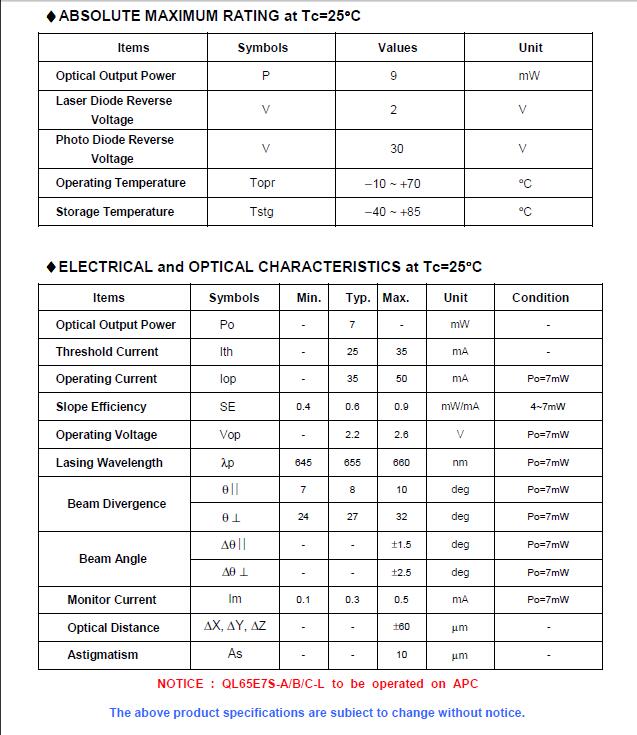

SPECIFICATION： Know
OVERVIEW
QL65E7S-A/B/C-L is a MOCVD grown 650nm band InGaAlP laser diode with quantum well
structure. It's an attractive light source, with a typical light output power of 7mW and low
operation current for optoelectronic devices such as Optical storage & Bar Code Reader.
APPLICATION
- Laser Module
- Optical Pick-up(Combo type : DVD+CDRW)
- DVD-ROM Drives, DVD-video players
- Bar Code Reader
FEATURES
- Visible Light Output : lp = 650 nm
- Optical Power Output : 7mW CW
- Package Type : TO-18 (5.6mmf)
- Built-in Photo Diode for Monitoring Laser Diode
