QL65D53A/B
Part Name：QL65D53A/B-650
Part No：QL65D53A/B
Wavelength：650nm
IOP：17mA
Optical Power：5mW
Part Package：TO-CAN (φ3.3mm, with window glass)
◆ Building decoration instrument market < p>1. The manufacturer of the line casting instrument < p>2. Manufacturer of leveling instrument < p>◆ measuring instrument market < p>1, laser rangefinder, total station instruments and other manufacturers. < ps > ◆ Toys and stage lighting market < p>1. Manufacturers of laser pens and pointer pens. < p>2. Equipment manufacturers such as stage and karaoke room. < p>◆ barcode scanner market < p>◆ Other markets < p>1. Manufacturers of laser therapeutic instruments. < p>2, sensors, laser headlights, etc.

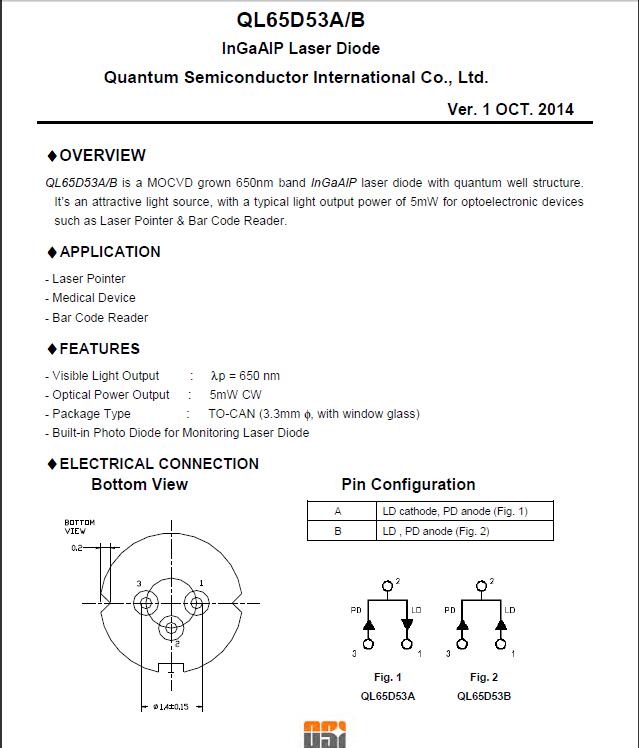

SPECIFICATION： Know
¨OVERVIEW
QL65D53A/B is a MOCVD grown 650nm band InGaAlP laser diode with quantum well structure.
It’s an attractive light source, with a typical light output power of 5mW for optoelectronic devices
such as Laser Pointer & Bar Code Reader.
¨APPLICATION
- Laser Pointer
- Medical Device
- Bar Code Reader
¨FEATURES
- Visible Light Output : lp = 650 nm
- Optical Power Output : 5mW CW
- Package Type : TO-CAN (3.3mm f, with window glass)
- Built-in Photo Diode for Monitoring Laser Diode
